Ultrasonic Thickness Testing Services in Egypt

Ultrasonic Thickness Testing (UTT) is a non-destructive testing (NDT) method that uses high-frequency sound pulses to gauge material thickness and detect hidden flaws. Unlike traditional destructive tests (which require cutting or coring a sample), UTT preserves the component and provides instant, accurate readings. A UTT gauge (transducer) sends ultrasonic waves into the part; the reflected echo from the far side is timed to calculate thickness. This one-sided, “pulse-echo” approach avoids damage and downtime, making UTT superior to micrometers or calipers for inaccessible or critical parts.

What is Ultrasonic Thickness Testing (UTT)?

Ultrasonic Thickness Testing (UTT) is an NDT method that uses sound waves to measure the thickness of materials (typically metals, plastics, composites) from one side. An ultrasonic transducer (a probe with piezoelectric crystals) emits high-frequency sound into the part. The sound travels through the material and reflects off the back wall or flaws; the device measures the time-of-flight of the echo. From that, the gauge calculates the remaining wall thickness.

This contrasts with destructive testing (like cutting or coring), which physically removes material to measure thickness. UTT is fully non-invasive: no cutting, no damage, and work can continue with minimal interruption. For example, micrometers or calipers require edges or open access and can only measure exposed metal. In contrast, UTT can check a long pipe or a pressurized vessel in service. As one expert notes, UTT is “used to determine the extent of corrosion and erosion in storage tanks, piping walls, pressure vessels and other equipment,” all without disassembly.

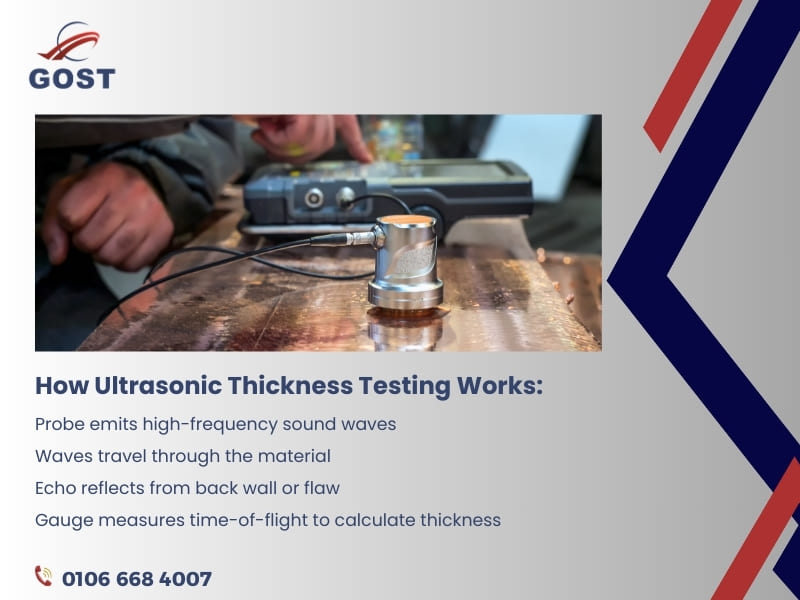

In practice, an inspector using UTT places the probe (with a thin gel couplant) on the part. A short ultrasonic burst passes through the material; the reflected wave (echo) is detected. The device then displays a thickness reading on-screen. Modern ultrasonic gauges can achieve resolutions of a few micrometers and often include thru-paint modes: advanced models average multiple echoes to filter out coating thickness. This means the same instrument can confirm the metal thickness under a layer of paint or insulation (by ignoring the coating), or simply measure the thin coating thickness if needed (using a dedicated dry film thickness gauge).

How Does Ultrasonic Thickness Testing Work? (The Science Behind UTT)

UTT relies on specialized NDT equipment: a handheld ultrasonic thickness gauge (also called a flaw detector or thickness meter), which includes a display, electronics, and a transducer probe. Other key components are:

• Transducers: These convert electrical pulses into ultrasonic sound waves and back. They come in different types (normal/straight beam, dual-element, angle-beam, immersion) depending on the material and application. For example, a contact transducer with a high-frequency crystal sends waves along the part, while an immersion transducer focuses through a water column.
• Couplant: A gel or oil applied between the probe and surface to facilitate sound transfer. Air is a poor transmitter of ultrasound, so the couplant ensures efficient wave transmission without gaps. Common couplants include glycerin, water, or proprietary gels.
• Flaw detectors/Gauges: Electronics that pulse the transducer and analyze echoes. They display the returned signal (A-scan) and compute thickness. More advanced instruments can produce B-scan and C-scan images.
• Calibration blocks: Known-thickness standards (often made of steel) are used to calibrate the gauge before testing. This ensures accuracy, as each material and transducer has a specific sound velocity.

Wave types: Ultrasonic testing primarily uses longitudinal (pressure) waves, where particles oscillate along the direction of travel, and sometimes shear (transverse) waves for different inspections. Longitudinal waves propagate well through solids and liquids; shear waves (at 90° polarization) are useful for detecting certain flaws in welds or layered materials. Both types reflect at boundaries (back wall or defects), giving data on thickness or internal cracks.

Pulse-Echo method: UTT most often uses the pulse-echo technique. The transducer sends a short ultrasonic pulse (a few microseconds) into the part. When the pulse hits the back wall or any flaw, part of the wave reflects back to the probe. The gauge measures the time it takes (time-of-flight) and, knowing the sound speed in the material, calculates thickness. The result is shown as an A-scan trace (amplitude vs time), but operators usually just use the numeric thickness readout.

Data Displays: Ultrasonic inspections can be recorded and interpreted in several formats:

• A-scan: The basic output, showing echo amplitude vs. time. The first major echo is usually from the front surface, and the second from the back wall. A-scan can reveal if a part is thinning (signal shift) or has a flaw (double echo).
• B-scan: A 2D cross-sectional slice as the probe is moved along a line. This creates a layered image showing thickness variations or defects along a path. B-scans help visualize welds or pipes along one axis.
• C-scan: A plan-view map. By systematically scanning in a grid, a C-scan produces a top-down image of uniform thickness regions vs. areas of corrosion or pits. It’s like an “ultrasonic photograph” of the test area.

Calibration and Standards: Reliable UTT requires properly calibrated equipment and qualified operators. Before any inspection, the gauge is calibrated with reference blocks of the same material. Technicians must follow certified procedures (e.g. ASME, ASTM, ISO standards) and use equipment that is maintained and calibrated per manufacturer specs. Internationally, industry certifications (e.g. PCN, ASNT SNT-TC-1A, API) attest that a service provider has up-to-date training and follows best practices.

Method	How it Works	Advantages	Disadvantages
Ultrasonic Thickness Testing (UTT)	Sends ultrasonic pulses and measures echo time to calculate thickness. A small couplant (gel) ensures sound transmission.	Non-destructive; one-sided access; highly accurate (microns); fast readings; portable field use; can ignore coatings.	Requires calibration and skilled operator; limited on very rough or granular materials.
Mechanical Measurement	Cut/sample a section and measure with a micrometer or caliper.	Direct physical measure; low-tech; no training needed.	Destructive; causes waste; risky on live equipment; impossible on complex shapes.
Radiographic Testing (X-ray)	Uses X-rays or gamma rays to image internal structure and estimate thickness via attenuation.	Can reveal internal flaws; no coupling needed.	Requires radiation safety; one-sided only; costly equipment; provides less thickness detail per se.

Key Applications of Ultrasonic Thickness Testing in Egypt

In Egypt’s heavy industries, UTT is a versatile solution for ensuring safety and longevity of assets. Major sectors where UTT is applied include:

• Oil & Gas: Crucial for inspecting pipelines, storage tanks, pressure vessels, and refinery equipment. For example, live gas pipelines and crude oil lines are scanned to monitor wall thinning and corrosion. UTT can quickly map remaining wall thickness of pipes, tanks or heater tubes to prevent leaks. In pressure vessels, UTT checks that thickness stays above design minimums. Regular gauging of oil/gas infrastructure (e.g. refineries at Suez or Cairo) uncovers corrosion or erosion before failure. According to industry sources, UTT is “essential for tanks and pipelines,” enabling early defect detection. Oil pipeline inspection provides comprehensive assessment of critical infrastructure integrity.
• Marine: Ship hulls, offshore platforms, and marine equipment are constantly exposed to saltwater corrosion. UTT is used during dry-docking or in-field surveys to verify hull plate thickness. For instance, ASTS (Applied Technical Services) reports performing UTT on ship hulls to detect lost metal due to rust. Offshore structures (Egypt’s Mediterranean rigs or Port Said platforms) similarly require UTT of jacket legs and caissons. In these environments, UTT gauges quickly highlight corroded areas that need repair. Marine inspection services ensure vessels maintain structural integrity throughout their operational life.
• Manufacturing: In heavy manufacturing plants (Alexandria, Cairo industrial zones), UTT ensures that parts and raw materials meet specifications. Manufacturers use thickness testing for quality control — measuring pipe, tube, coil, and casting thickness. As one industry guide notes, “Ultrasonic thickness gauges can be used to measure many metal products, including pipes and tanks… to ensure manufacturing meets industry standards”. This prevents substandard parts from entering service. Aerospace and automotive suppliers (e.g., companies in the Sixth of October or New Cairo areas) also rely on UTT to verify critical components are within tolerances.
• Construction & Infrastructure: UTT supports structural health monitoring of steel frameworks, bridges, concrete supports (with proper probes), and reinforcing bars. In bridge inspections, UTT can check the thickness of steel girders. For welded joints in steel structures (e.g. cranes at ports), UTT can detect internal cracks or weld defects (see below). According to Olympus NDT, UT gauges are ideal for metal structures since undetected corrosion “can weaken the structural integrity of metals like beams, bridge supports, and steel pilings”. Periodic UTT helps Egypt’s infrastructure (from Cairo metro works to Suez rail bridges) stay safe. Crane inspection services are essential for ensuring lifting equipment remains safe and compliant with industry standards.
• Power Generation: Boilers, steam piping, and turbine casings in power plants are routinely thickness-tested. Boilers and condensers suffer from erosion/corrosion, and UTT is the standard method to measure remaining wall thickness in tubes. In fact, ultrasonic gauges are “used to determine the extent of corrosion and erosion in… boilers”, ensuring these systems remain safe under high pressure. Turbine blades can also be gauged for metal loss. Boiler inspection services help maintain optimal performance and prevent costly failures in power generation facilities.
• Petrochemical: Reactors, heat exchangers, storage tanks, and process piping in petrochemical plants are scanned with UTT. Given Egypt’s expanding petrochemical facilities (e.g. Ain Sokhna, Alexandria), UTT is key for tanks and vessels handling corrosive chemicals. As with oil & gas, UTT enables early detection of corrosion in chemical process vessels before it causes safety issues. UTT is often mandated by petrochemical standards (API, ASME) for periodic inspections.
• Other Industries: UTT is also found in aerospace (inspecting engine discs, landing gear components) and automotive (checking chassis and exhaust parts). In general industrial maintenance (like factories in 10th of Ramadan City or Assiut), UTT gauges are part of routine preventive maintenance. The method suits virtually any common engineering material — metals, plastics, composites, fiberglass, even ceramics. This broad applicability means UTT services in Egypt span every major sector where structural integrity is critical.

Why is UTT Crucial for Your Business in Egypt?

Implementing UTT brings tangible benefits in safety, cost, and efficiency:

• Enhanced Safety: By detecting wall thinning and hidden flaws early, UTT helps prevent catastrophic failures (ruptures, collapses, leaks) that could endanger personnel and the environment. Since UTT is fully non-destructive testing, the component remains intact. No part is sacrificed, and no explosive dangers (as in radiography) are involved. As one industry source notes, using NDT methods “minimize safety concerns, ensure code compliance, and reduce major repairs”. In practice, a corroded pipeline section found by UTT can be replaced before a leak ignites — a life-saving and cost-avoiding outcome.
• Cost Savings: Early flaw detection translates into major savings. By catching corrosion or erosion well before failure, UTT allows planned repairs and extends asset life. For example, a mining onshore pipe might cost $100M/day in dowentime if it bursts; routine UTT inspections can avoid such scenarios. UTT can reduce unplanned outages and maintenance costs.
  AQC Inspection notes that “unscheduled maintenance due to unexpected failures can be extremely costly” and that UTT allows planning maintenance to “avoid unexpected failures and minimize downtime”. Over time, the small cost of annual thickness scans pays for itself by preventing emergency repairs and production losses.
• Regulatory Compliance: Many international and local standards require regular thickness inspection. Meeting ASNT, API, ASTM, or ISO standards is mandatory in oil & gas and petrochemical industries. UTT ensures compliance by verifying that wall thickness remains above the code’s minimum.
  For instance, API 570 (pipe inspector code) and API 653 (tank inspection) explicitly call for thickness measurements at specified intervals. Using a certified UTT service means your inspections “meet or exceed global safety benchmarks”, avoiding fines or shutdowns. In short, UTT helps your operation pass audits and keeps permits in good standing.
• Asset Management & Decision-Making: UTT provides quantitative data for proactive maintenance. Detailed thickness maps (often included in inspection reports) let engineers assess which sections to repair or replace, and when. Clear, visual reports with 2D/3D defect maps enable informed planning.
  As one expert blog notes, providers should offer “jargon-free reports with visual data… enabling informed decisions”. Good thickness data is vital for integrity management programs: it allows extension of safe operating life or rationalization of asset retirement based on facts rather than guesswork.
• Quality Assurance: In manufacturing or construction, UTT verifies quality. By ensuring material thickness meets design specs, it guarantees that products and structures are built right.
  This reduces rework and warranty claims. For example, an automotive plant may inspect frames with UTT to confirm no thinning occurred during forming. Or, a steel fabricator in Alexandria might use UTT to confirm beam thickness before shipyard delivery. In this way, UTT backs up quality standards with measurement data.
• Efficiency: Ultrasonic gauges deliver rapid results with minimal disruption. A handheld UTT inspection at one point takes only a few seconds. Surveys of large assets (like an entire tank) can be done in hours or days, much faster than disassembling and repairing.
  UTT works from only one side, which means you never need access behind the part — a huge time-saver compared to methods requiring double-sided access. Modern instruments are portable and battery-powered, so inspections can happen on-site (Cairo factories, Port Said docks, etc.) without logistics delays. Overall, UTT’s speed and ease of use mean you can inspect more in less time. In one case study, adopting UTT and drones reduced inspection costs by ~45%.

Common Challenges Addressed by UTT

UTT is particularly effective at finding issues that often plague critical assets:

• Corrosion & Erosion: Perhaps the most common threats in Egypt’s chemical and marine environments. UTT excels at spotting metal loss from corrosion before it causes leaks. For example, tanks holding acids or seawater tend to thin at the bottom due to chemical attack; UTT quickly identifies the thin spots.
  Likewise, high-velocity flow (at pipe elbows or pump outlets) can erode inner walls. UTT can detect even gradual loss of metal from erosion, allowing reinforcement of vulnerable sections. Early detection of these degradation mechanisms prevents in-service accidents.
• Internal Flaws, Cracks & Delaminations: UTT not only measures thickness but also senses internal defects. Any crack or delamination acts as a reflector, producing an unexpected echo. In welded joints (common in oil rigs or structural steel), UTT can locate root cracks or lack-of-fusion.
  As GOST Egypt notes, AWS-trained technicians use UT for weld quality, and UT “identifies cracks, weld defects, or wall thickness variations” in pipelines. Even subsurface laminations in castings or composite panels (e.g. yacht hulls) can be detected by UTT. Welding inspection services ensure that critical joints maintain their structural integrity throughout their service life.
• Degradation Over Time: Materials naturally degrade under stress and environment (metal fatigue, creep, etc.). UTT provides a baseline and follow-up measurements to track this. By comparing year-to-year thickness readings, engineers can quantify wear rates and plan interventions before a part nears its design minimum. This proactive approach solves the challenge of “unknown degradation” by revealing it in data form.
• Inaccessible or Hazardous Areas: UTT’s one-sided access is a big advantage for hard-to-reach spots. Whether inside a closed vessel, behind scaffolding, or at height on a flare stack, inspectors only need to place the probe on one side. Some inspections (like boiler tube openings at a power plant, or the underside of a ship hull) would be extremely difficult or dangerous without UTT’s minimal access requirement. Flooding tanks or using rope-access platforms (as ATS does for hulls) combined with UTT can cover nearly all areas.
• Weld and Joint Integrity: Ensuring the soundness of welds is critical, especially in pipelines, bridges, and cranes. UTT complements visual and magnetic tests by detecting internal weld flaws.
  For example, ultrasonic weld inspection in a petrochemical plant in Suez can confirm joints have no hidden cracks, thus addressing a challenge that if unchecked could cause catastrophic failure under pressure.

Choosing the Right UTT Service Provider in Egypt

When selecting a thickness-testing partner, businesses should look for:

• Certified Technicians: Ensure inspectors hold recognized NDT qualifications (ASNT or PCN Levels I/II/III) for ultrasonic testing. Technicians should be certified for UT specifically and ideally in your industry (oil & gas, petrochemicals).
  For example, GOST Egypt staffs ASNT- and AWS-certified experts, meaning they’ve passed rigorous exams and training. Qualified personnel translate into accurate, reliable inspections.
• Accreditation & Standards Compliance: The provider should follow international and local standards. Look for accreditation to ISO/IEC 17025 for calibration labs, ISO 9001 for quality, and compliance with industry codes (API 570/653, ASME, etc.). A reputable company will maintain traceable calibration of gauges and regularly audit its processes. For oil & gas, check that the firm is familiar with API and ASME inspection codes.
  For example, GOST Egypt highlights API and ASNT certifications as proof that it “provides accurate, reliable, and compliant results every time”. Professional calibration and testing services ensure measurement accuracy and regulatory compliance.
• Comprehensive Service Range: Choose a provider offering the full suite of ultrasonic thickness services: handheld UT, advanced phased-array ultrasonic testing (PAUT), immersion tank testing, and 3D scanning options for large vessels. They should handle all scales of work—from small component QA to full plant surveys.
  Also consider whether they offer related NDT (MPI, liquid penetrant, radiography) if needed, as some providers bundle methods for asset integrity. Magnetic particle testing services complement ultrasonic testing for comprehensive defect detection.
• Modern Equipment: Verify the firm uses up-to-date UT instruments and transducers. Features like multi-echo modes, data logging, and digital reporting are now standard.
  Portable, battery-powered gauges (for field work) and lab bench units (for delicate tasks) should be available. If your asset has exotic alloys or coatings, confirm they have the right probes (e.g. low-frequency transducers for castings, or specialized probes for through-coating measurement).
• Reputation and Testimonials: Look for case studies or client references, especially in your industry. Providers experienced in Egypt’s specific sectors (like petrochem in Alexandria or marine in Suez) will understand local challenges. For instance, positive feedback from an oil refinery or shipping company in Egypt can signal competence. GOST Egypt’s site highlights successful projects (e.g., a Middle Eastern gas operator leak fix) and long-term clients as proof of trust.
• Local Presence & Responsiveness: Ideally, the provider has offices or teams in Egypt’s key cities (Cairo, Alexandria, Suez, Port Said, etc.) so they can respond quickly to service requests. GOST Egypt, for example, emphasizes its teams in Alexandria and Cairo and offers 24/7 emergency support.
  When the slightest leak or thickness concern arises, a local partner can be on-site within hours, minimizing downtime. Knowing that your UT partner has boots on the ground across Egypt assures you of prompt service.

Frequently Asked Questions (FAQs) about UTT

What is the difference between UTT and other NDT methods?

Ultrasonic Testing uses sound waves to directly measure thickness and find internal defects. In contrast, magnetic particle or dye penetrants are limited to surface-breaking flaws on ferrous materials, and radiographic (X-ray) testing uses radiation to image internal structure (but requires safety measures and doesn’t directly read thickness). UTT’s advantage is one-sided, immediate thickness data with no radiation hazards. It can inspect many materials (metals, plastics, composites) where some other methods cannot.

How often should thickness testing be performed?

Frequency depends on industry standards, material, and operating conditions. High-risk piping (e.g. sour gas lines) is often scanned every 3–5 years with annual visual checks, per API guidelines. Lower-risk assets might be tested every 5–7 years. Ultimately, inspection schedules should be set by a qualified engineer following codes (API/ASME) and considering corrosion rates. In practice, many Egyptian plants build UT surveys into their maintenance shutdown plans, performing thickness checks at regular intervals or after a certain production period.

Can UTT be used on coated or painted surfaces?

Yes, but with some caveats. A standard UT gauge measures the metal’s echo; a thick coating will delay the echo. Many gauges have a thru-paint or multiple-echo mode: they capture several backwall echoes and ignore the outer coating layer. This way, you get the metal thickness despite a layer of paint or rubber. Alternatively, one can remove paint at the spot or use a dry film thickness (DFT) gauge to measure the coating separately. In summary, UTT can effectively measure substrate thickness beneath common coatings if used properly.

What are the limitations of UTT?

UTT requires a coupling medium (gel or water) and a reasonably smooth surface. Very rough or irregular surfaces can scatter the sound and reduce accuracy. Extremely thin materials (fractions of a millimeter) or highly attenuative composites may exceed a gauge’s range. Also, achieving reliable results demands skilled operators: interpreting echoes can be tricky with multiple layers or weld geometry. There is an upfront equipment cost and training requirement. Despite these, in most industrial settings these challenges are manageable with modern instruments and certified technicians.

How long does a UTT inspection take?

Each thickness reading is virtually instantaneous (microseconds for wave travel). A single point take just a few seconds to record. Overall time depends on the area scanned and access difficulty. For example, measuring one tank bottom may take only minutes per spot, so scanning dozens of points on a small tank can be done in an hour or two. A full pipeline or ship hull survey might take several days. Modern gauges with data-logging speed up the process. In short, UTT is very fast compared to teardown methods: you can often inspect a whole pipe run or vessel section in hours, with minimal downtime. The exact time is quoted by the service company based on the asset size and access.
